RhinoTuning 4.88in Push Through Wheel Center Hub Caps with Removable Top Caps and 9/16"-18 Lug Nuts
These 4.88in push-through wheel center caps with removable top caps and 9/16"-18 lug nuts fit for 4.88'' trailer truck SUV camper center rim bore, 3.77'' tall. Grease can be added without removing the wheels, thanks to the design of the open top caps.
【Attention】
Important Note for Stock Wheel Owners
Before purchasing new lug nuts, we recommend matching the flange shape, seat type, and height to your existing ones for proper fit.
Since wheel requirements vary, lug nuts/bolts must match your wheel’s specifications. If you're unsure, feel free to ask us.
【Color】Chrome / Black
【Package】
We have four styles to choose from

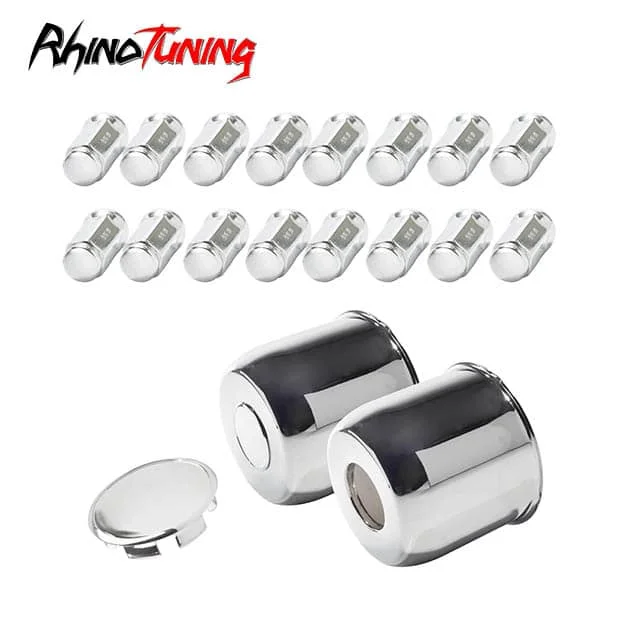

1. Chrome: 2Pcs Center Caps. 16 Pcs 9/16-18 60° Lug Nuts (Mirror Chrome Plated Carbon Steel)

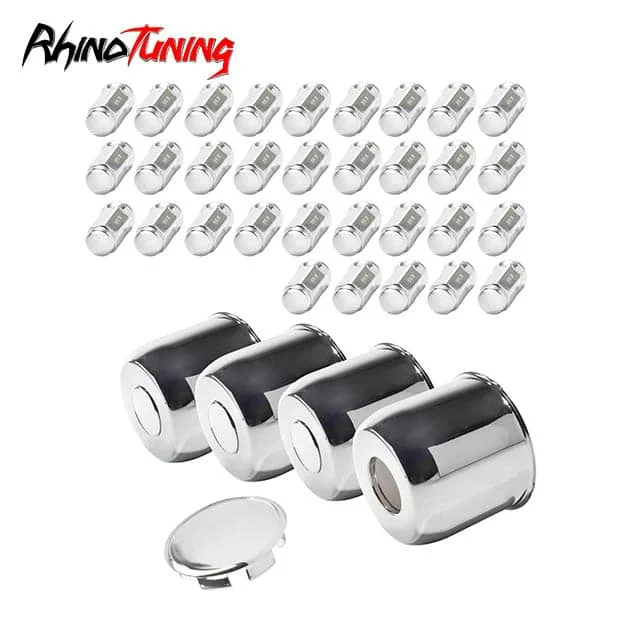

2. Chrome: 4pcs Center Caps. 32 Pcs 9/16-18 60° Lug Nuts (Mirror Chrome Plated Carbon Steel)

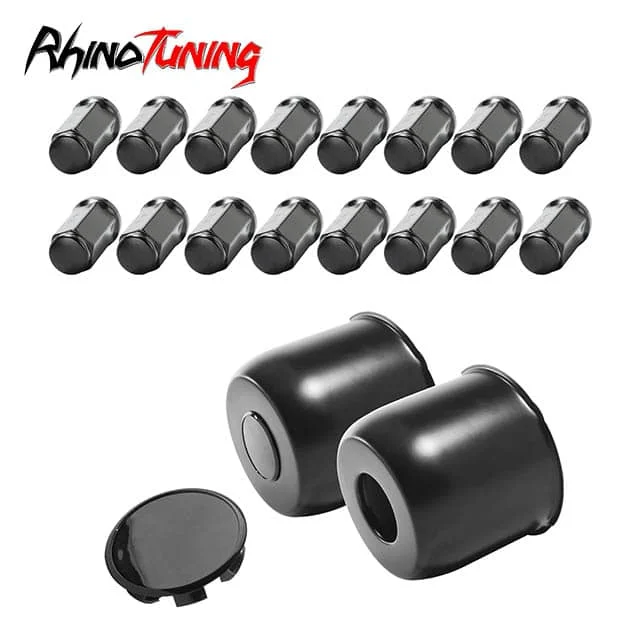

3. Matte Black: 2pcs Center Caps. 16 Pcs 9/16-18 60° Lug Nuts (Matte Black Painted Carbon Steel)

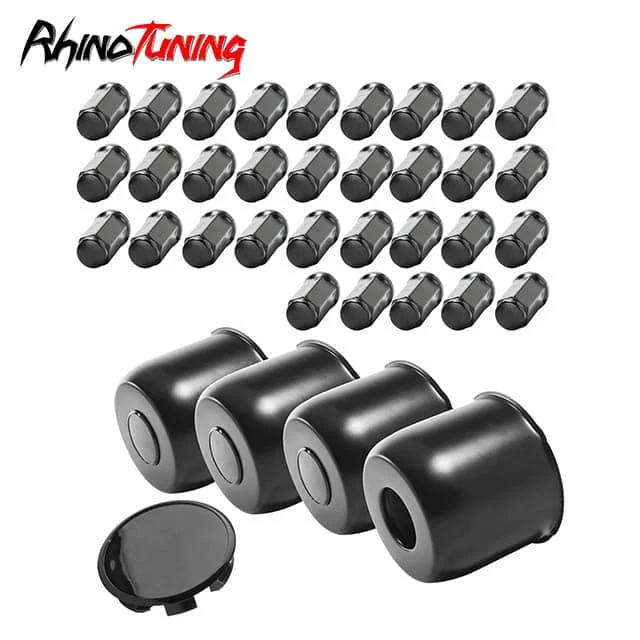

4. Matte Black: 4pcs Center Caps. 32 Pcs 9/16-18 60° Lug Nuts (Matte Black Painted Carbon Steel)
【4.88in Push Through Center Caps Size】
|
The maximum Diameter |
131mm（+ -1mm） |
5.16in |
|
Barrel Diameter |
124mm（+ -1mm） |
4.88in |
|
Barrel inner diameter |
122mm（+ -1mm） |
4.80in |
|
Barrel Height |
108mm（+ -1mm） |
4.25in |
| Barrel Inner Height | 96mm（+ -1mm） | 3.77in |
|
Total Height |
110mm（+ -1mm） |
4.33in |
| Label Diameter | 50mm（+ -1mm） | 1.97in |
【Lug Nuts Size】
Thread Size:9/16-18
Length: Only 1.92" (48mm)
Width: Only 0.9'' (23mm)
Hex: 3/4" (19mm)
Seat: conical 60-degree seat
color: chrome
Check wheel studs are less than 1.67” Long
Check wheel lug hole flange requirement is 0.9”
【Fit For】
Fit for 4.88" trailer/truck rims center bore, 3.77" tall
【Material】
4.88in Push Through Center Caps：Carbon Steel
9/16''-18 lug nuts： Carbon Steel
Installation：Push Through & Lug Nuts
If you can't find the right size, you may click the link below to check, we have more sizes
 |
 |
 |
 |
 |
 |
PLEASE CHECK ALL DIMENSIONS AND MESSAGE US WITH ANY QUESTIONS.
